VGX-21

With fast changeable Toolhead System

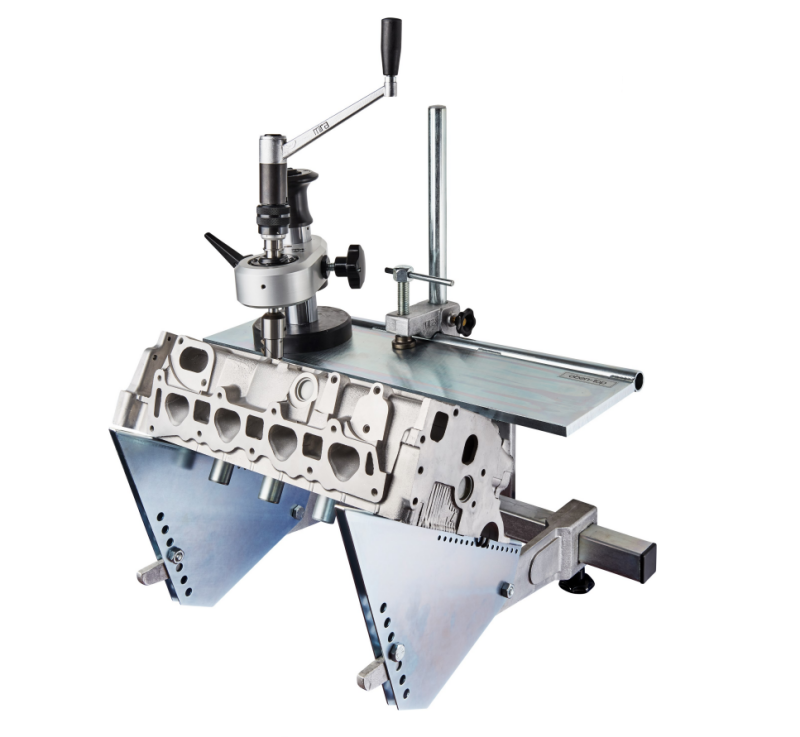

The portable VGX-21 valve seat refacing unit has been developed for the specialised petrol and diesel cylinderhead workshop. The highly accurate valve seat processing is achieved by a spherical spindle guide bearing as well as a unique hydraulic ball clamping system. A almost pressure free centering and braceless fixing of the MIRA rotary head is made possible in order to achieve precise and concentric valve seats.



Specifications

  • Valve stem diameter 4 - 16mm
  • Valve seat diameter 16 - 75mm
  • Seat ring couterbores 21 - 75 mm



The VGX-21 Package includes

  • VGX-21 Valve Seat Refacing Unit
  • DT1 Toolhead for 21-45mm Diameters
  • 06 FD Type Pilots (Standard selection)
  • 06 SK Type Formtools (Standard selection)
  • AV Basic Cylinderhead Support for Wall mounting
  • Service Tooling and Equipment
  • Manual Crank-Handle
  • Instruction Manual and Formtool Catalog
  • Wooden Storage Box



Optional Equipment

  • DT05 toolhead for 16 - 25 mm seat diameters
  • DT2 toolhead for 37 - 55mm seat diameters
  • DT3 toolhead for 35 - 75mm seat diameters
  • DSD double edged toolhead for 26 - 36mm 0° or 5°
  • DSD double edged toolhead for 35 - 45mm 0° or 5°
  • DSD double edged toolhead for 45 - 55mm 0° or 5°
  • DSD double edged toolhead for 55 - 75mm 0° or 5°
  • Adjusting Micrometer EM25 - 75
  • VD-97 Vario Drive Electronic Drive unit
  • MUV-95 Multivac Vacuum Test Unit
